| #V-235715 - Osiloscop FNIRSI DSO-520 |
| Tipul anuntului: | Vanzari | |
| Categorie: | APARATURA DE MASURA SI CONTROL | |
| Anunt introdus la: | Sâmbătă, 21 iun 2025 - 21:46:22 | |
| Autor: | Leonte Vasile (yo4aw) | |
| Indicativ radio: | YO4AW | |
| Email: | ||
| Telefon: | 0735 335 657 | |
| Adresa postala: | Constanta | |
| Pret: | 300 LEI | |
| Informatii suplimentare: | ||

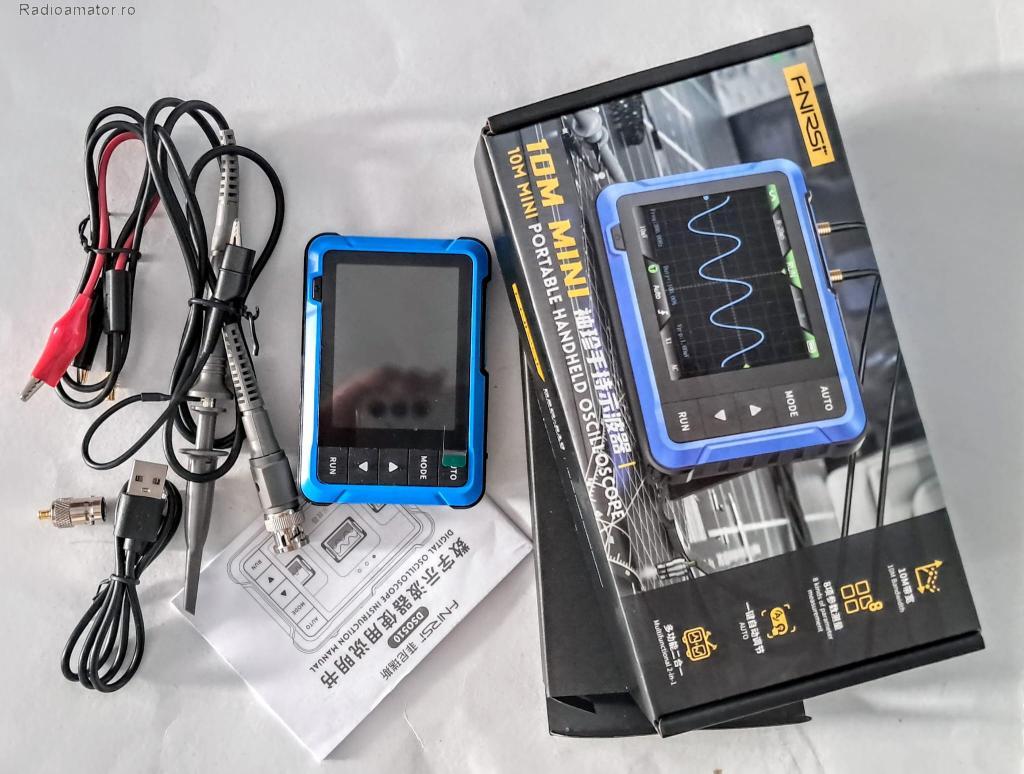

| Mini Oscilloscop 10Mhz cu generator 50KHz, absolut nou.
Specificații tehnice: Channel：1 Sampling rate：48MSa/s Vertical sensitivity：10mV/Div-20V/Div（Progress according to the 1-2-5 way） Time base range：50ns/Div-20s/Div（Progress according to the 1-2-5 way） Voltage range：X1:士40V (Vpp:80V) X10: 士400V (Vpp :800V) Trigger method：Auto / Normal / Single Coupling method：AC/DC * Signal generator * Frequency：0-50KHz Duty cycle：0-100% (rectangular and sawtooth waves) Amplitude：0.1-3.0V Waveforms：Sine wave, rectangular wave, sawtooth wave, half wave, full wave, step wave, anti step wave, exponential rise, exponential drop, DC signal, multi tone, Sink pulse, Lorentz wave. * Other Parameters * Display：2.8 inches/PPI:320*240 USB charging：5V/1A Lithium battery capacity：1000mAh Size：99x68.3x19.5mm Weight：104g | ||
|
| ||
