| #V-241308 - Vand 6 buc. E80L Adzam,Siemens |
| Tipul anuntului: | Vanzari | |
| Categorie: | TUBURI ELECTRONICE (LAMPI) DE UZ GENERAL SI SOCLURI | |
| Anunt introdus la: | Vineri, 24 oct 2025 - 18:36:39 | |
| Autor: | Tase (tase) | |
| Indicativ radio: | ||
| Email: | ||
| Telefon: | 0736171519 | |
| Adresa postala: | ||
| Pret: | IN TEXT | |
| Informatii suplimentare: | ||

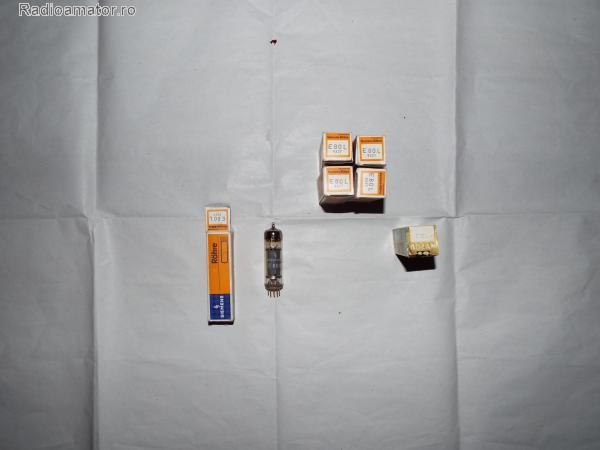

| Vand sau schimb cu diverse 6 buc. E80L=6227 Adzam,Siemens NIB
E80L (Pentode Power/Output) is a special quality audio output valve. The anode dissipation is 8 Watts and the amplification factor(µ) is 21.5. As a single ended class A amplifier the E80L will deliver 2.7 Watts. For two valves operating in class AB push-pull an output of 5.7 watts is achievable with 3% total distortion. Mullard describe the E80L as a special quality output pentode designed for use in industrial equipment where stability of characteristics and long life are required. E80L was first introduced in 1952. Description: Vf 6.3V / If 0.75A / Indirect / Parallel, (AC/DC) Va=200. Vs=200 Vg-4.4 mAa=30 mAs=4.1 ra=90.000 gm=9.0 Ik<50mA Pa<8W 10€ buc Prefer schimb cu alte tuburi. Pentru detalii puteti suna la nr. de tel. 0736171519 | ||
|
| ||
| Vazut de 4 ori | ||
|
