| #V-245061 - Osciloscop OWON SDS1104 100Mhz |
| Tipul anuntului: | Vanzari | |
| Categorie: | APARATURA DE MASURA SI CONTROL | |
| Anunt introdus la: | Duminică, 11 ian 2026 - 21:09:18 | |
| Autor: | Catalin (yo3clu) | |
| Indicativ radio: | YO3CLU | |
| Email: | ||
| Telefon: | 0744138916 | |
| Adresa postala: | Voluntari, ILFOV | |
| Pret: | 850 LEI | |
| Informatii suplimentare: | https://www.owontechnology.eu/product/2429525/owon-sds1104-100mhz-4-channel-digital-oscilloscope/ | |

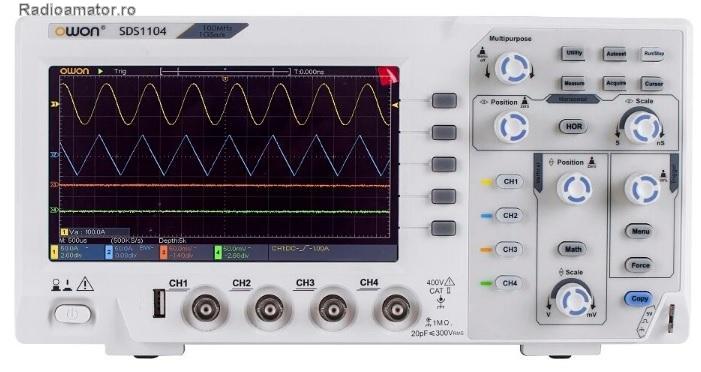

| Vand osciloscop electronic digital, OWON SDS1104, Banda 100MHz, 4-Canale, 1GS/s Sample Rate, absolut nou, deschis pt proba, cutie, tot ce ofera producatorul.
Specifications: Model SDS1104 Bandwidth 100MHz Sample Rate 1GS s Horizontal Scale (s div) 2ns div 1000s div, step by 1 2 5 Rise Time (at input, typical) ≤3.5ns Channel 4 Display 7'' color LCD, 800 x 480 pixels Input Impedance 1MΩ ± 2%, in parallel with 20pF±5pF Max Input Voltage 400V (PK PK) (DC+AC, PK PK) DC Gain Accuracy ±3% Record Length 20K DC Accuracy (average) Average≥16：±(3% reading + 0.05 div) for △V Probe Attenuation Factor 1X, 10X, 100X, 1000X LF Respond (AC, 3dB) ≥10Hz (at input, AC coupling, 3dB) Sample Rate Relay Time Accuracy ±100ppm Interpolation sin (x) x Interval (△T) Accuracy (full bandwidth) Single : ±(1 interval time + 100ppm x reading + 0.6ns), Average>16 : ±(1 interval time + 100ppm x reading + 0.4ns) Input Coupling DC, AC , and GND Vertical Resolution (A D) 8 bits (2 channels simultaneously) Vertical Sensitivity 5mV div 5V div (at input) Trigger Type Edge, Video Trigger Mode Auto, Normal, and Single Trigger Level ±5 divisions from screen center Line Field Frequency (video) NTSC, PAL and SECAM standard Cursor Measurement △V, and △T between cursors Automatic Measurement Vpp, Vavg, RMS, Frequency, Period, Vmax, Vmin, Vtop, Vbase, Width, Overshoot, Pre shoot, Rise time, Fall time, +Width, Width, +Duty, Duty, Delay A→B , Delay A→B, area, cycle area, FRR, FRF, FFR, FFF, LRR, LRF, LFR, LFF Waveform Math ＋, －, x, ÷, invert, FFT Waveform Storage 16 waveforms Lissajous Figure Bandwidth Full bandwidth Phase Difference ±3 degrees Communication Interface USB host, USB device Frequency Counter available Power Supply 100V 240V AC, 50 60Hz, CAT II Power Consumption | ||
|
| ||
